Long endurance fixed-wing vtol drone YF14E
Long endurance fixed-wing vtol drone YF14E
Product Overview

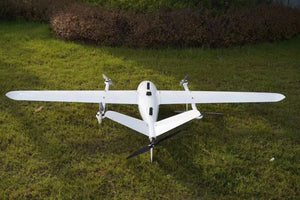

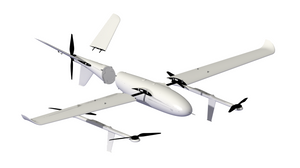

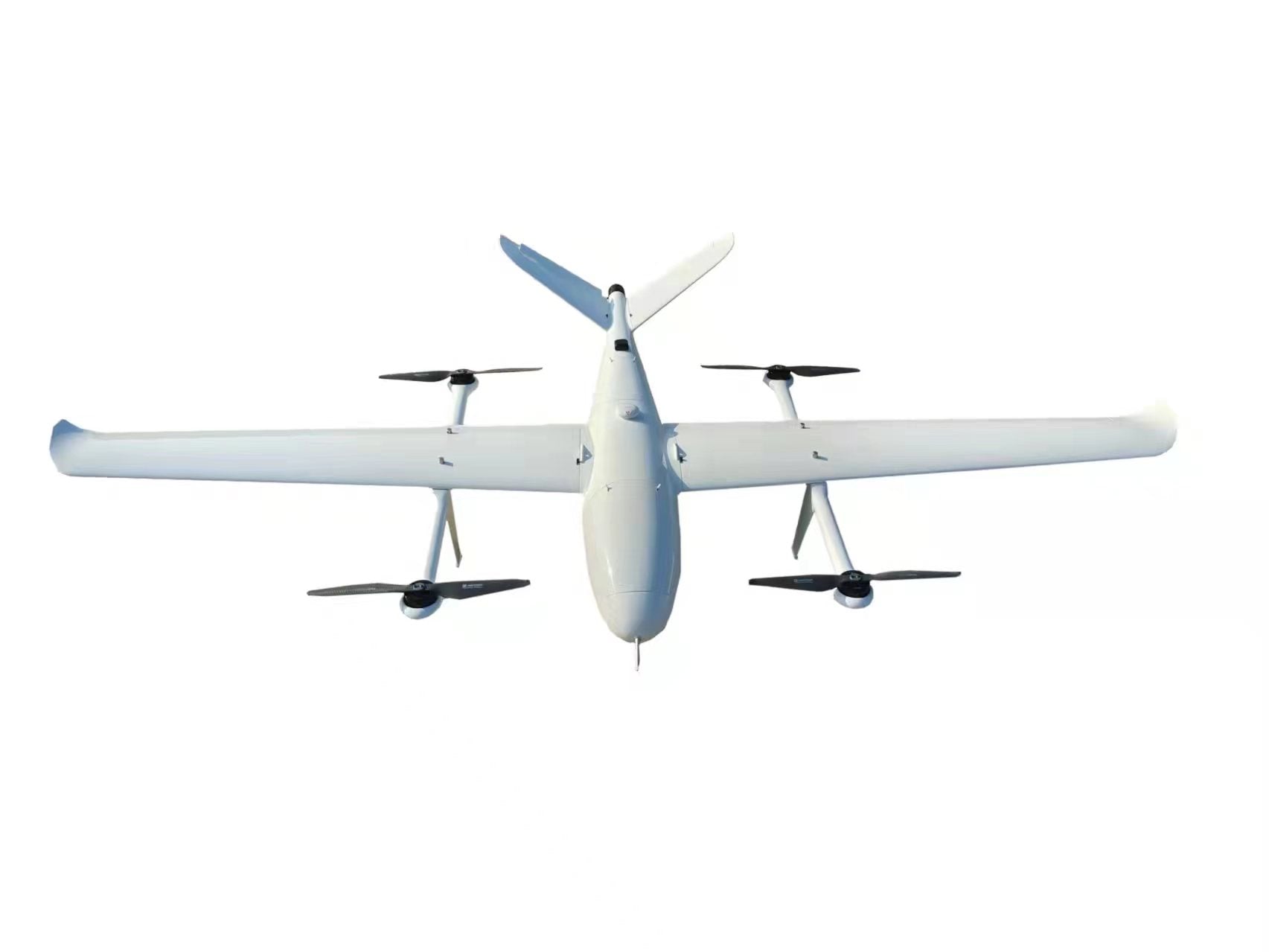

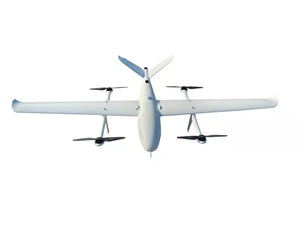

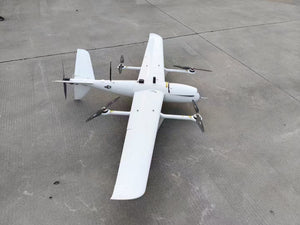

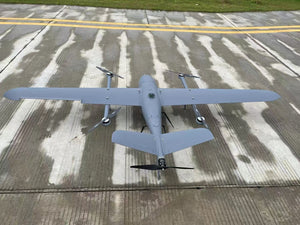

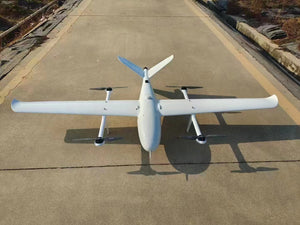

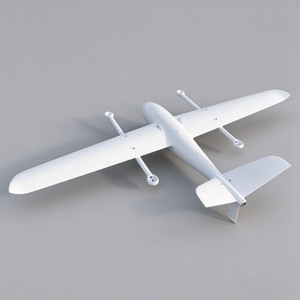

SKYWING YF14E is a lightweight pure electric vertical take-off and landing（VTOL） fixed wing UAV.
The development of this UAV was based on long-endurance and long-range requirements according to the characteristics of the application for Mapping and Inspection. Optimized details for aerodynamic and refined on the power system,the UAV reached an ultra long endurance of 210minutes and long range of 250KM.
One minute rapid deployment is achieved through modular design, which makes a better operating experience for users. And with the design of independent payload cabin,users can replace the payload flexibly according to the operation requirements.
Performance Parameters
|
Fuselage Length |
1.26m |
|
Wingspan |
2.5m |
|
Max payload |
2.5kg |
|
Maximum take-off weight |
14kg |
|
Endurance |
210mins@ 1kg load |
|
Cruising speed |
20m/s |
|
Power battery |
25000mah/22.8v |
|
Maximum flight altitude |
4800m |
|
Maximum wind resistance |
12m/s (Level 6) |
|
Control radius: |
10km（ Customizable） |
|
Operating temperature |
-10~60℃ |
|
Waterproof class |
IP54 |
|
Aviation packaging box siz |
1470mm*560mm*400mm |
Our common configuration components for reference:
