Long range vtol fixed-wing drone YF26E
Long range vtol fixed-wing drone YF26E
Product Overview

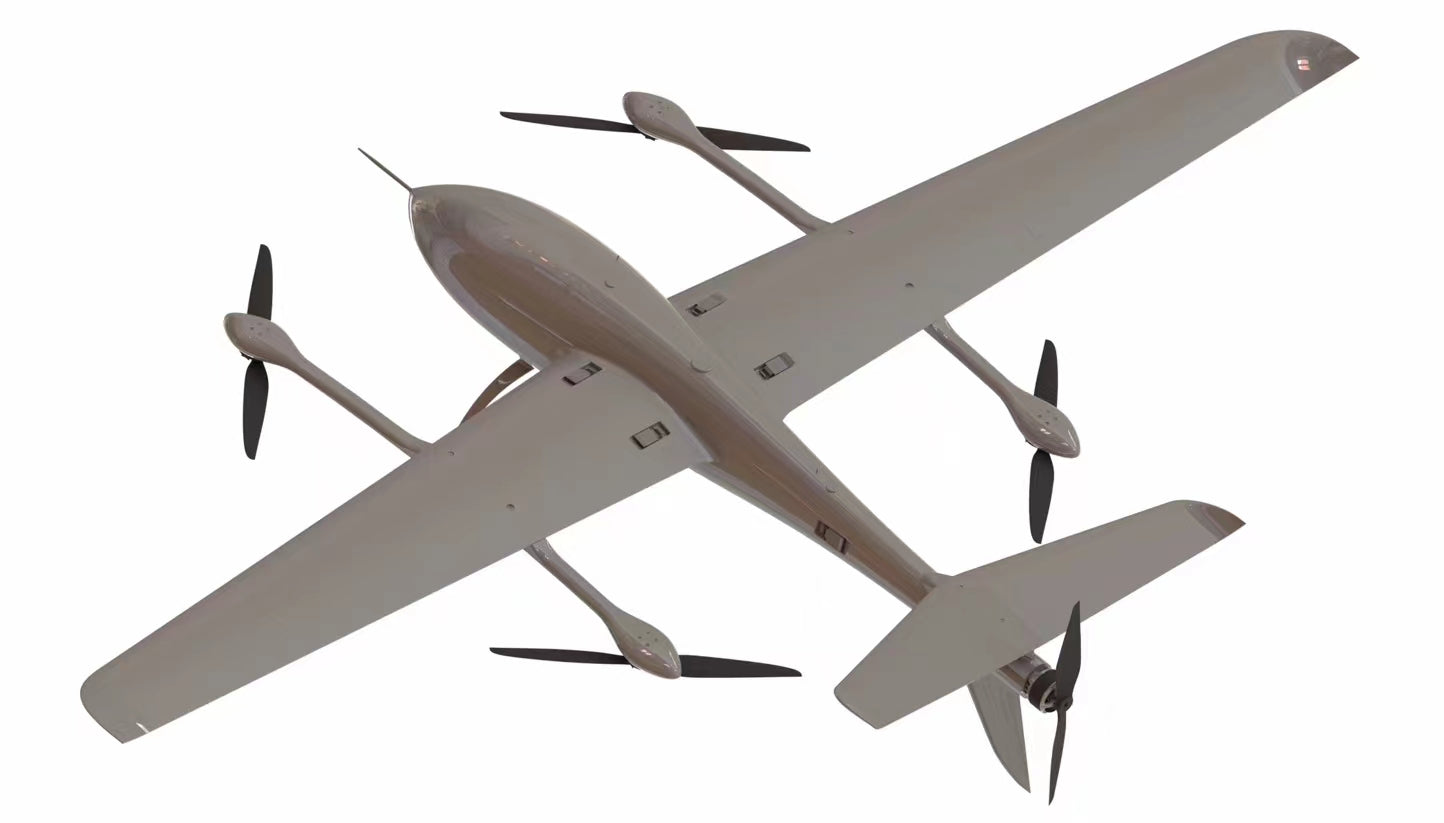

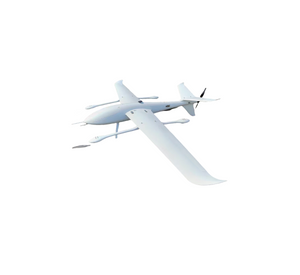

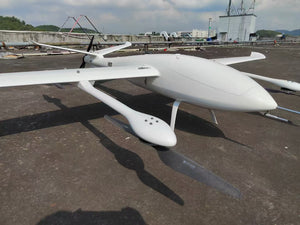

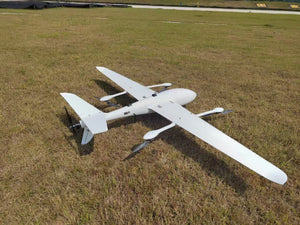

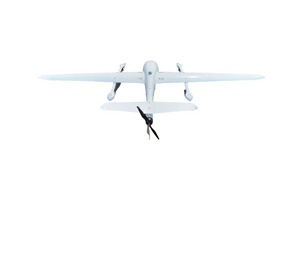

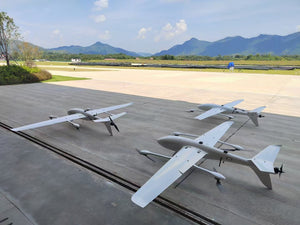

SKYWING YF26E is a pure electric vertical take-off and landing(VTOL) fixed-wing UAV which adopts a composite aerodynamic layout of quad-rotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long range of the fixed-wing models.Flexible and can adapt to various complex take-off and landing conditions.
It could equip with high-precision stabilized pod system and the exclusive touch terminal of innovative pod which can reduce the difficulty of locking and tracking for moving targets, and complete the tasks efficiently in the application of inspection and tracking.
Performance Parameters
|
Fuselage Length |
1.83m |
|
Wingspan |
3.2m |
|
Max payload |
5kg |
|
Maximum take-off weight |
26kg |
|
Endurance |
240mins@ 1kg load |
|
Cruising speed |
21m/s |
|
Power battery |
25000mah 6S*4pcs |
|
Maximum flight altitude |
4200m |
|
Maximum wind resistance |
12m/s (Level 6) |
|
Control radius: |
10km(Customizable) |
|
Operating temperature |
-10~60℃ |
|
Waterproof class |
IP54 |
|

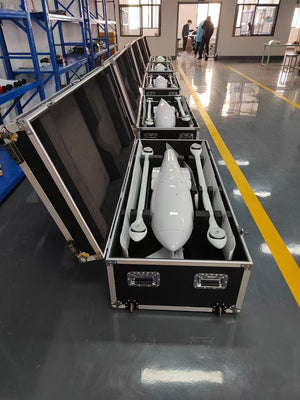

Aviation packaging box siz |
1800mm*680mm*480mm |
Our common configuration components for reference
