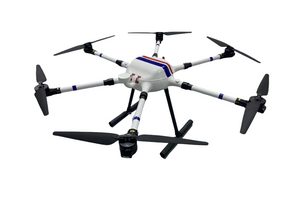

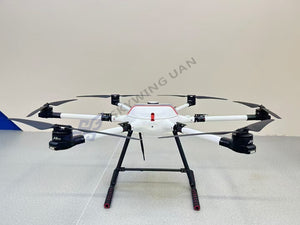

Carbon fiber unibody molding multi-rotor drone frame HX330
Carbon fiber unibody molding multi-rotor drone frame HX330
Multi-rotor HX330 chassis is carbon fiber unibody molding, the overall quality of light, high strength, high toughness, high temperature resistance, good rainproof, high flight stability!
Performance Parameters
Fuselage Material |
Toray 3K Carbon Fiber |
Manufacturing Process |
High temperature and high pressure molding |
Thickness |
Regular 0.6mm |
Weight of casing |
1.75KG |
Weight of casing + power unit |
5.65KG |
Equivalent Wheelbase |
1290mm |
Number of rotors |
6pcs |
Unfolded Size |
1390mm*1210mm*550mm |
Folded Size |
600mm*500mm*550mm |
Battery compartment size |
250mm*180mm*150mm |
Recommended Load |
3-5KG |
Unladen Endurance |
>75min |
Load capacity 5KG |
>60min |
Whole machine without loaded weight (Ultra Air 6s 32000*2 pieces) |
10.5KG |
Control distance |
30KM (handheld ground station control) |
Optional 4G/5G satellite communication unlimited distance |
|
Adaptive mounting |
Camera, throwing equipment, shouting device, radar, descender, etc. |
Motor |
Goodwin X6 power set |
Adaptive paddle |
22-24 inch |
Lifting and lowering mode |
Vertical take-off and landing |
Working Temperature |
-20℃~60℃ |
Flying Speed |
15 meters/second |
Climbing speed |
5m/s (adjustable according to flight control) |
Wind Rating |
Class 6 wind |
Rainproof grade |
Medium rain |
Whether rotor wheelbase / tripod height can be customized |
Yes |
Powertrain Replacement |
Yes |
Minimum thrust/weight ratio to ensure safety |
1.3 |
High altitude performance |
Passed the plateau test |
Practical lift |
>4000 meters |
Type of flight control support |
Multi-rotor control is available for all flight controllers. |
Suitable for mounting
About Purchase
You are free to choose buy the following drone components according to your needs:
Optional 1: Drone Frame Type:HX330-F
Optional 2: Drone Frame with Propulsion System Type: HX330-P
Optional 3: Drone with Ready To Fly . Type: HX330-R
