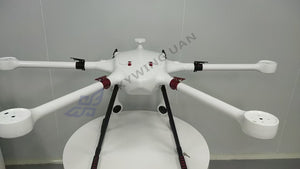

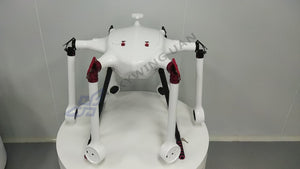

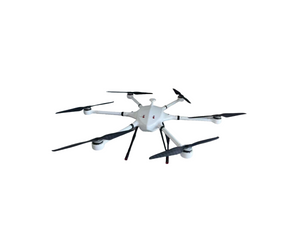

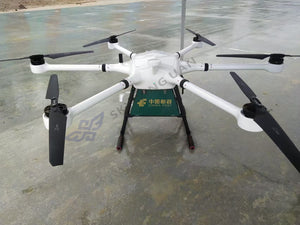

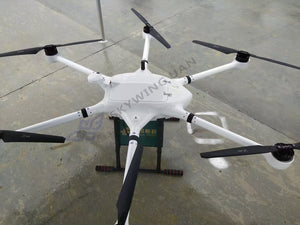

Large payload multi-rotor drone frame H601
Large payload multi-rotor drone frame H601
Advantage:
H601 multirotor drone chassis is carbon fiber unibody molding, the overall quality of light, high strength, high toughness, high temperature resistance, good rainproof, high flight stability!
Performance Parameters
|
Fuselage Material |
Toray 3K Carbon Fiber |
|
Manufacturing Process |
High temperature and high pressure molding |
|
Thickness |
Regular 0.6mm |
|
Weight of casing |
3.5KG |
|
Weight of casing + power unit |
10KG |
|
Equivalent Wheelbase |
1600mm |
|
Number of rotors |
6pcs |
|
Wheelbase |
1600mm |
|
Unfolded Size |
1510mm*1735mm*610mm |
|
Folded Size |
700mmm*65m0*610mm |
|
Battery compartment size |
250mm*210mm*110mm |
|
Recommended Load |
5-10KG |
|
Unladen range |
＞100min |
|
Load capacity 10KG |
＞55min |
|
Whole machine without loaded weight (Caohang battery 12s 32000*2pcs) |
20KG |
|
Control distance |
30KM (handheld ground station control) |
|
Optional 4G/5G satellite communication unlimited distance |
|
|
Adaptive motor |
T-MOTOR MN8017 KV120 or 8 series motor |
|
Adaptable paddle |
30 inch |
|
Take-off and landing mode |
Vertical take-off and landing |
|
Working Temperature |
-20℃~60℃ |
|
Flying speed |
15m/s |
|
Climbing speed |
5m/s (adjustable according to flight control) |
|
Wind Rating |
Class 6 wind |
|
Rainproof grade |
Medium rain |
|
Whether rotor wheelbase / tripod height can be customized |
Yes |
|
Powertrain Replacement |
Yes |
|
Minimum thrust/weight ratio to ensure safety |
1.3 |
|
High altitude performance |
Passed the plateau test |
|
Practical lift |
>4000 meters |
|
Type of flight control support |
Multi-rotor control is available for all flight controllers. |
Suitable for mounting
About Purchase
You are free to choose buy the following drone components according to your needs:
Optional 1: Drone Frame Type: H601-F
Optional 2: Drone Frame with Propulsion System Type: H601-P (Including airframe,motor, ESC, propeller blade)
Optional 3: Drone with Ready To Fly . Type: H601-R
