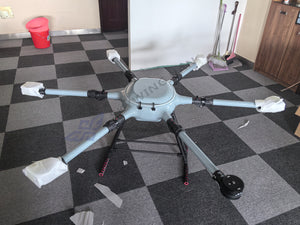

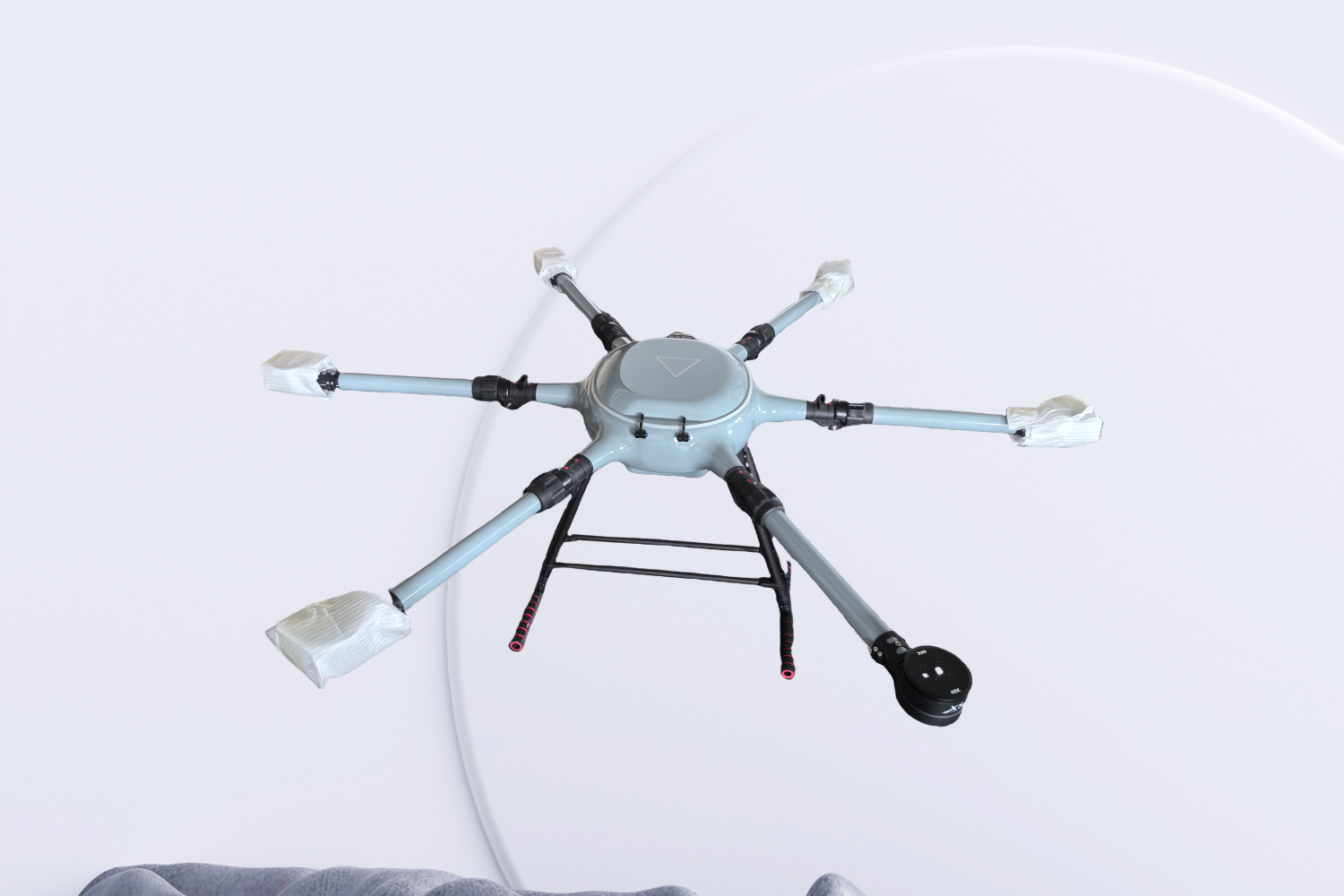

Payload 20kg multi-rotor hexapod UAV delivery drone frame M20
Payload 20kg multi-rotor hexapod UAV delivery drone frame M20
Adavntage
M20 chassis is carbon fiber unibody molding, the overall quality of light, high strength, high toughness, high temperature resistance, good rainproof, high flight stability!
Performance Parameters
|
Fuselage Material |
Toray 3K Carbon Fiber |
|
Manufacturing Process |
High temperature and high pressure molding |
|
Thickness |
Regular 0.6mm |
|
Weight of casing |
5.5KG |
|
Weight of casing + power unit |
10KG |
|
Equivalent Wheelbase |
1900mm |
|
Number of rotors |
6pcs |
|
Unfolded Size |
1510mm*1735mm*610mm |
|
Folded Size |
760mm*760mm*750mm |
|
Battery compartment standard size |
250mm*180mm*150mm |
|
Recommended Load |
20KG |
|
Unladen range |
＞50min |
|
Load 15KG range |
＞40min |
|
Whole machine without loaded weight (Ultra Voyage 14s 22000*2 pieces) |
30KG |
|
Control distance |
30KM (handheld ground station control) |
|
Optional 4G/5G satellite communication unlimited distance |
|
|
Adaptive motor |
Goodwin X9 power set |
|
Adaptable paddle |
34 inch |
|
Take-off and landing mode |
Vertical take-off and landing |
|
Working Temperature |
-20℃~60℃ |
|
Flying speed |
15m/sec |
|
Climbing speed |
5m/s (adjustable according to flight control) |
|
Wind Rating |
Class 6 wind |
|
Rainproof grade |
Medium rain |
|
Whether rotor wheelbase / tripod height can be customized |
Yes |
|
Powertrain Replacement |
Yes |
|
Minimum thrust/weight ratio for safety |
1.3 |
|
Maximum size of battery compartment |
330mm*290mm*100mm |
|
High altitude performance |
Passed the plateau test |
|
Practical lift |
＞4000 meters |
|
Type of flight control support |
Support multi-rotor control is available for all flight controls. |
Suitable for mounting
