SKYWING Long Range Fixed Wing UAV SE120

Sale price $5,000.00

Capability: Payload, 10kg

Optional SE120: SE120 KIT
SKYWING  Long Range  Fixed Wing UAV SE120

SKYWING Long Range Fixed Wing UAV SE120

Description

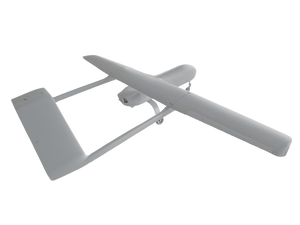

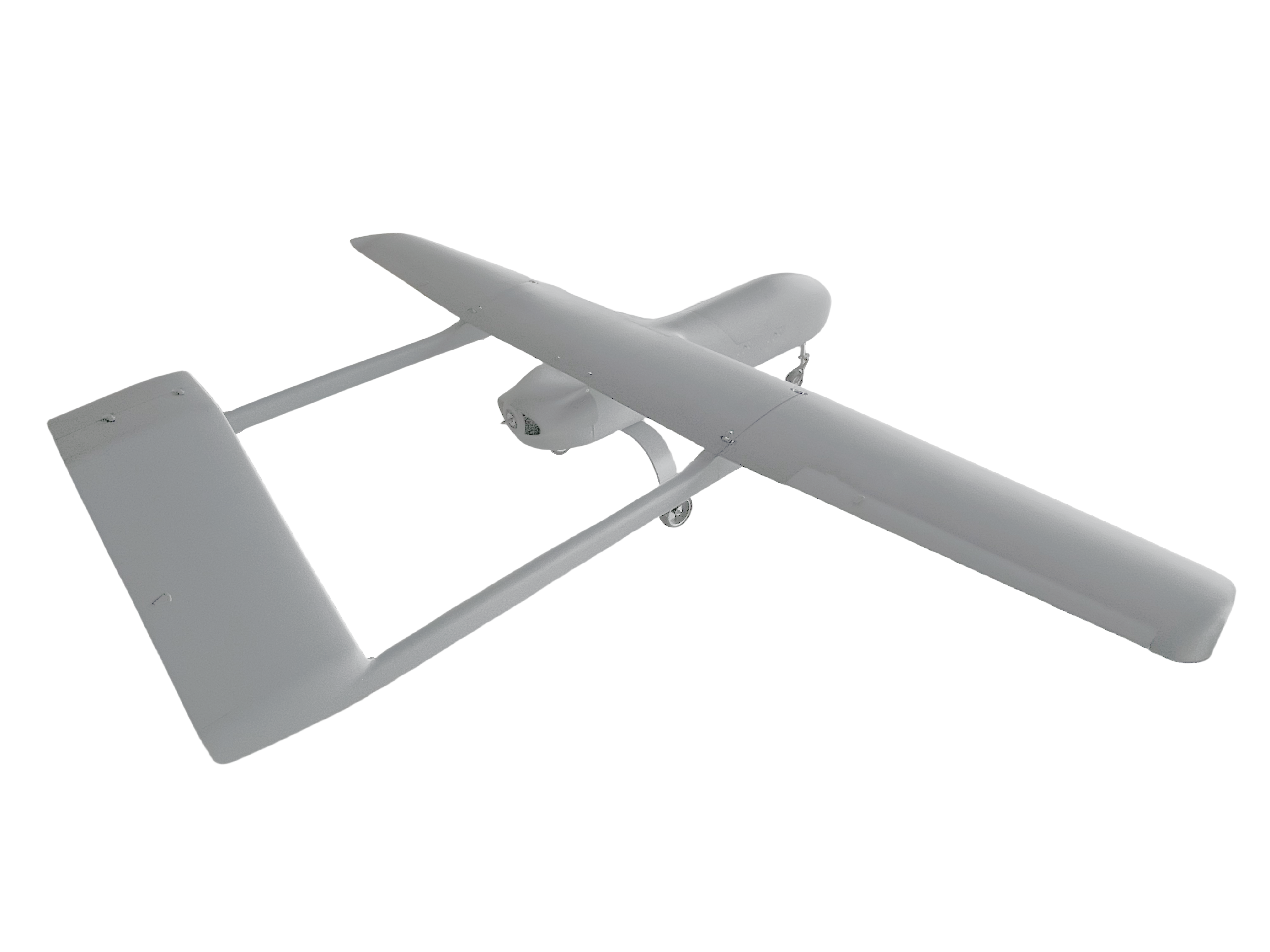

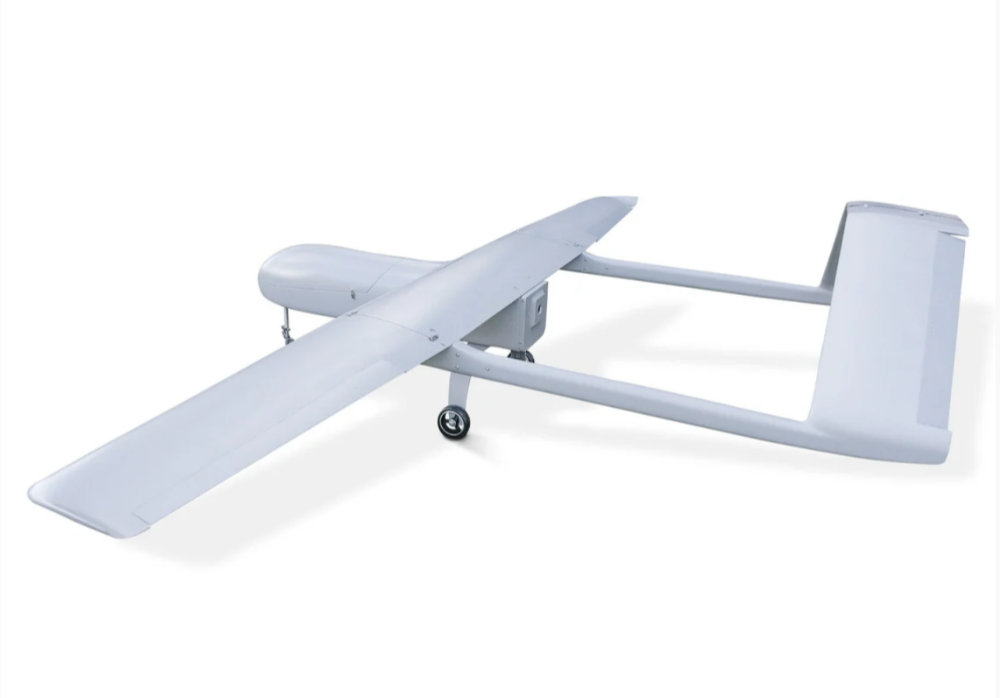

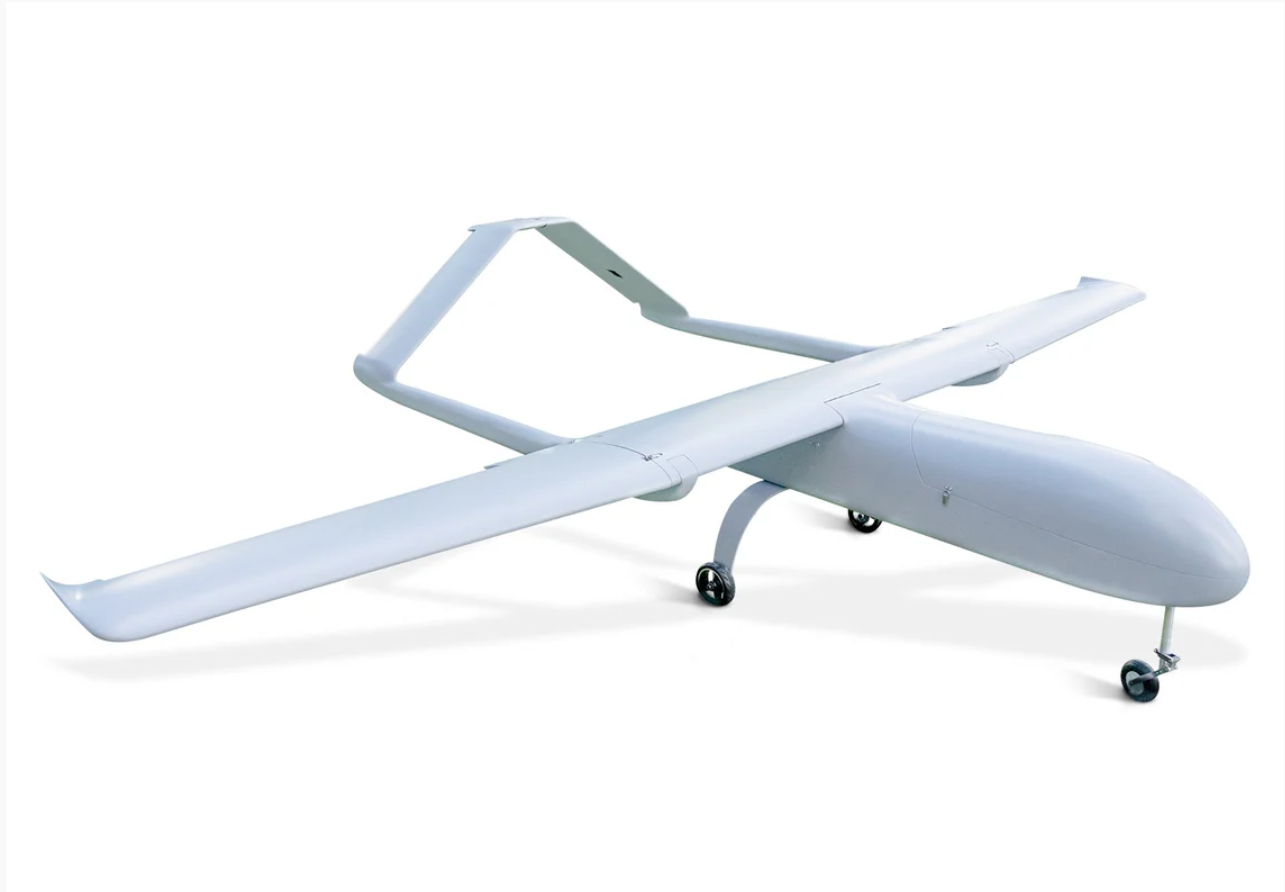

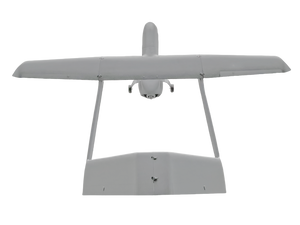

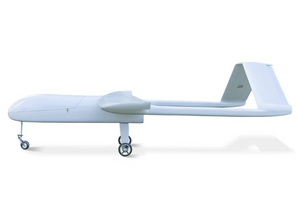

The SKYWING SE120 V-Tail UAV Platform is a highly versatile airframe tailored for professional use. With a wingspan of 3670mm and length of 2650mm, it boasts exceptional aerodynamic capabilities. Its V-Tail design adds to its stability and control, making it suitable for various aerial tasks such as surveillance, mapping, and scientific research. Rather than pre-equipped models, the SE120 3670mm comes as an empty airframe, providing the opportunity for customization. It can be powered by engines 120cc, making it suitable for specific needs. The airframe is optimized for both short-field operations with a takeoff distance of just 50 meters, as well as long-endurance missions. Professionals have the option to select between electric or gasoline power packages, which must be purchased separately. The UAV airframe is designed to accommodate advanced ignition systems and carburetors, ensuring reliable and efficient operation.

SKYWING SE3600  FIXED   WING
Name Specification KIT PNP(M) PNP(E)
Flying platform Outer wing 2  2  2
 Center wing 1  1  1
 Main body 1  1  1
Stay bar 2  2  2
Undercarriage 1  1  1
 Skateboard 1  1  1
 Plain tail 2  2  2
hatchcover 1  1  1
Fuel tank 1  1  1
 Engine hood 1  1  1
Power system(Motor) Dualsky GA6000.8180RPMV Brushless Motor 1
Dualsky XC13036HV 130A High Voltage ESC 1
Savox 1256 Servo 7
Sail 24x12 High Power Propeller 1
MT90 UAV Pitot Tube 1
Wire bale 1
Power system(Engine) 120cc Engine 1
Savox 1256 8
Sail 23x9 High Power Propeller 1
MT90 UAV Pitot Tube 1
Wire bale 1
