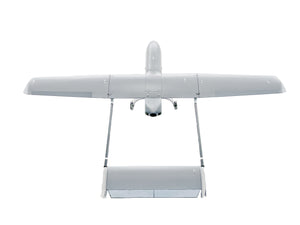

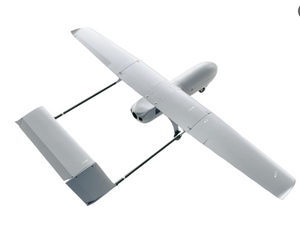

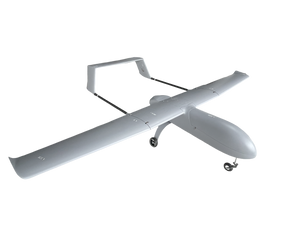

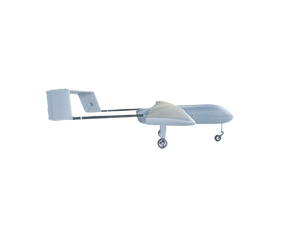

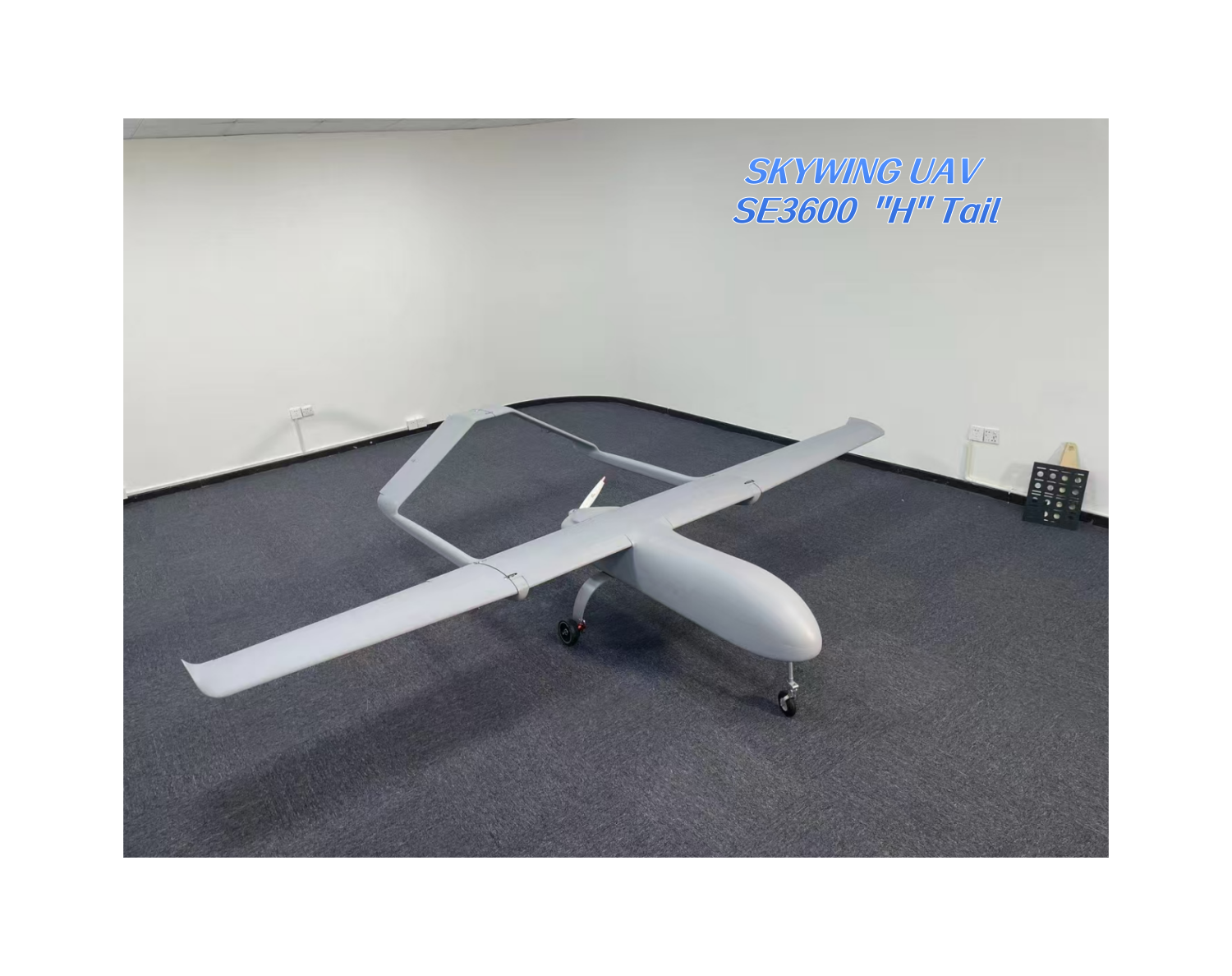

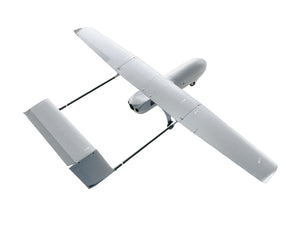

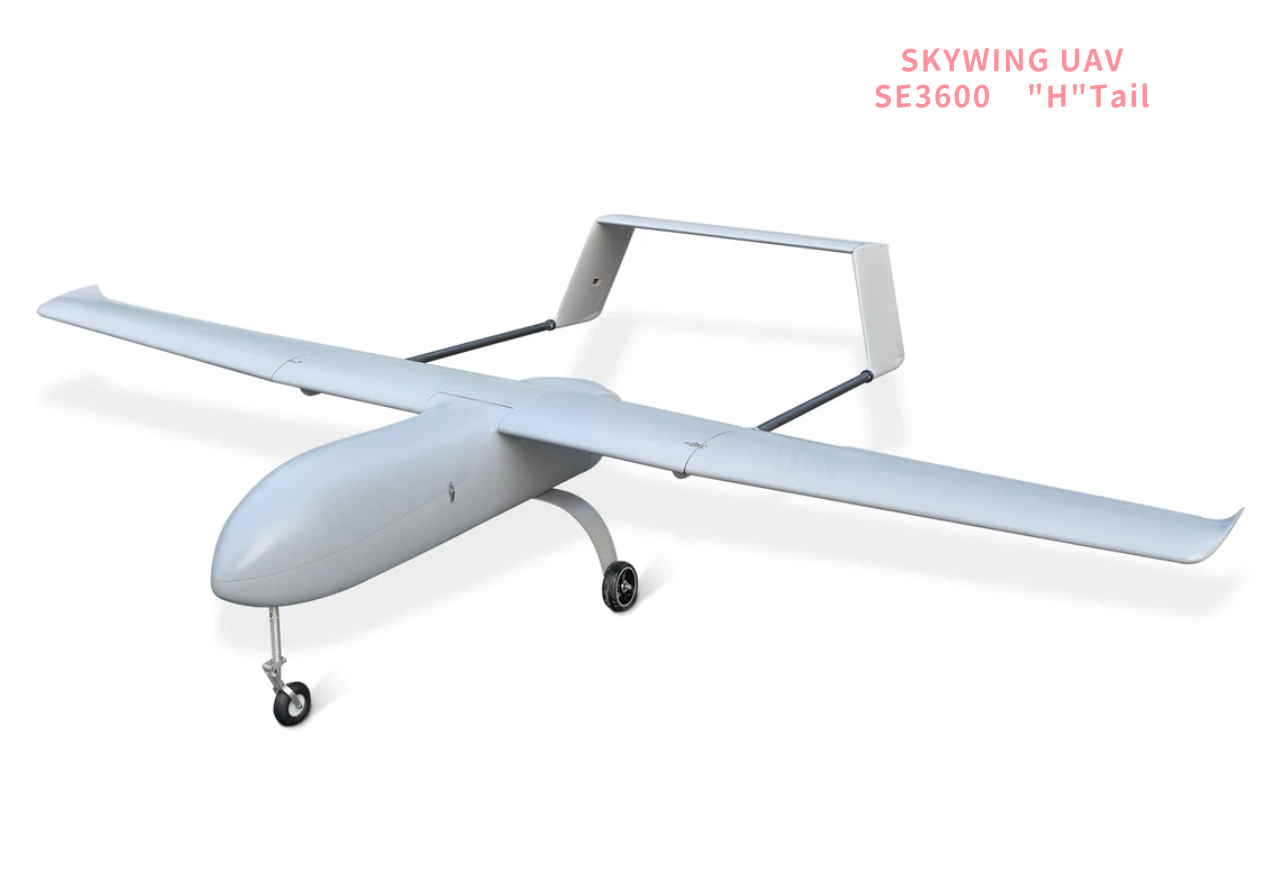

SKYWING Long Range Cargo Fixed Wing UAV SE3600
SKYWING Long Range Cargo Fixed Wing UAV SE3600

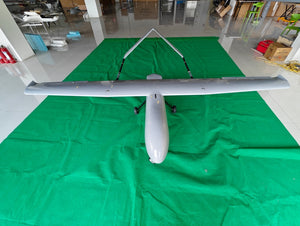

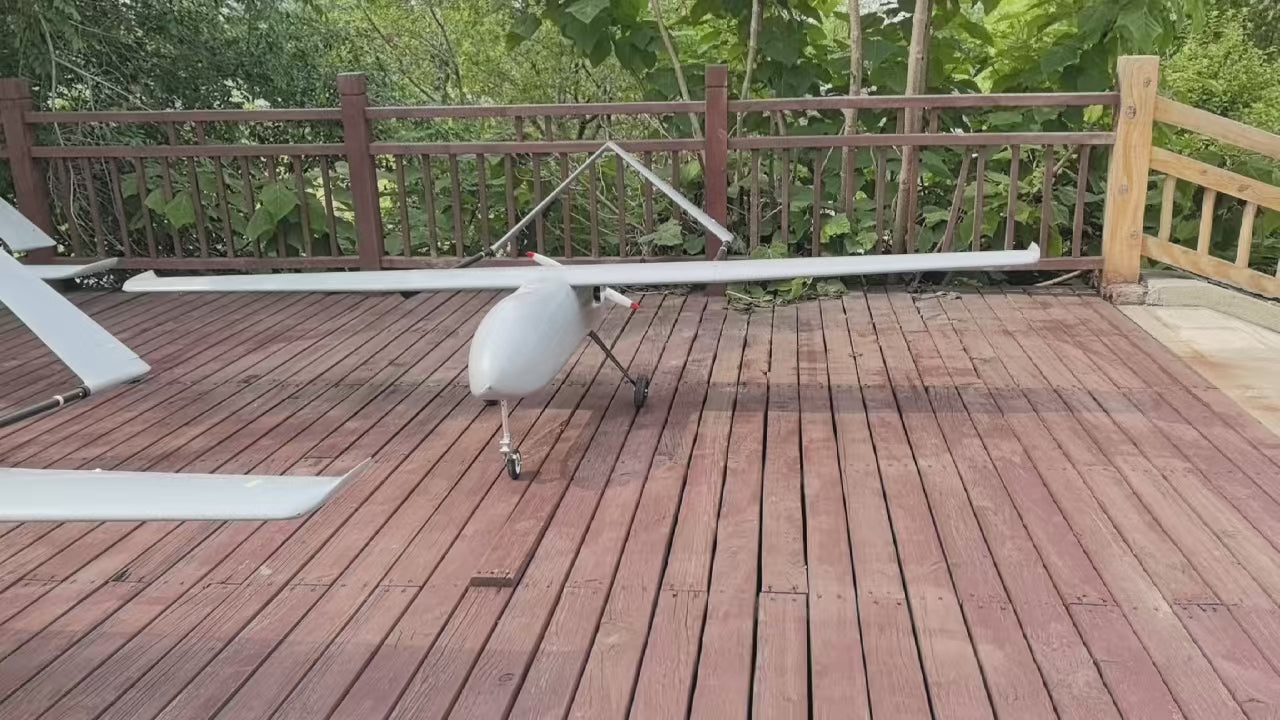

SKYWING SE3600 Carbon Fiber UAV Platform is a state-of-the-art unmanned aerial vehicle designed for professional use. Engineered with high-grade carbon fiber, this UAV offers unparalleled durability while being lightweight. It boasts a wingspan of 3600mm and a maximum take-off weight of 38kg, allowing for a generous payload capacity of 5~10kg. With a cruise speed of 80km/h and a maximum speed of 150km/h, The drone is built for both speed and endurance. It can fly up to 3 hours on just 6 liters of fuel, making it an economical choice for extended missions.
The platform also offers customizable power packages (additionally charge), either gasoline or electric, to suit specific operational needs. Overall, the SE3600 is a versatile, reliable, and high-performance UAV ideal for a wide range of professional applications.
| SKYWING UAV SE3600 Fixed Wing | |||

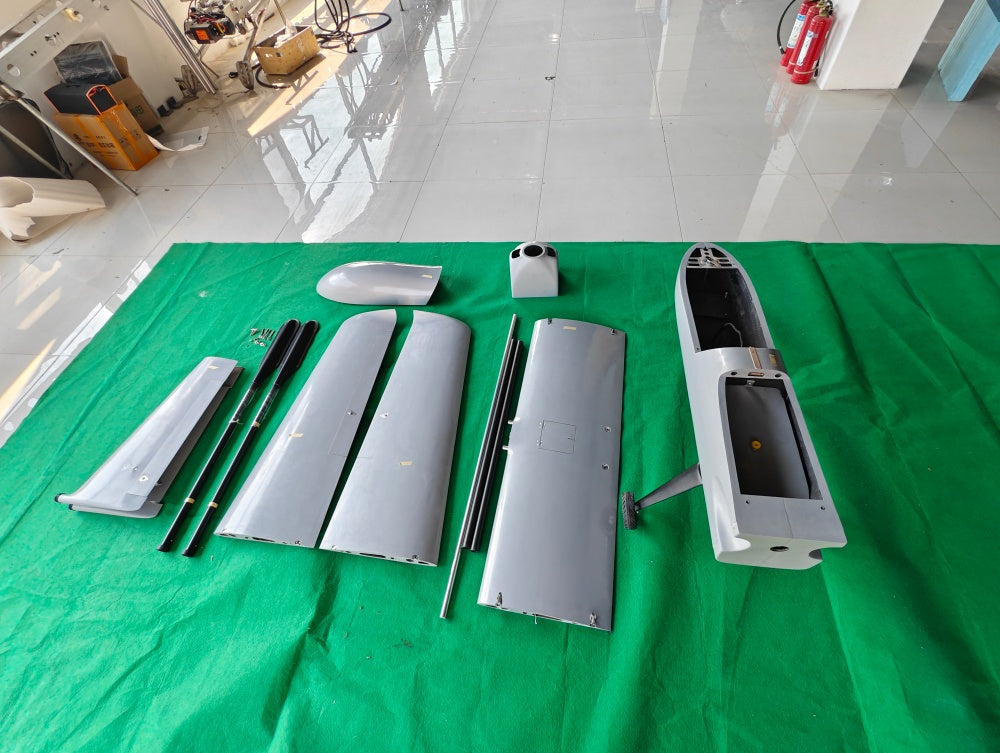

| Name | Specification | KIT | PNP |
| Flying platform | Outer wing | 2 | 2 |
| Center wing | 1 | 1 | |
| Main body | 1 | 1 | |
| Stay bar | 2 | 2 | |
| Undercarriage | 1 | 1 | |
| Skateboard | 1 | 1 | |
| Plain tail | 2 | 2 | |
| hatchcover | 1 | 1 | |
| Fuel tank | 1 | 1 | |
| Engine hood | 1 | 1 | |
| Power system | DLE60 Engine | 1 | |
| Savox 1256 | 8 | ||
| Sail 23x9 High Power Propeller | 1 | ||
| MT90 UAV Pitot Tube | 1 | ||
| Wire bale | 1 | ||
| PARAMETER | Wingspan | 3600mm |
| Length | 2450mm | |
| Wing Area | 132dm2 | |
| Weight and Payload | Maximum Take-Off Weight | 28KG |
| Payload Capacity | 8-10KG | |
| Fuel Tank | 8L | |
| Empty Weight | 11KG | |
| Flight Time | 3-5h | |
| Maxium Speed | 150km/h | |
| Flight Characteristics | Stall Speed | 50km/h |
| Packaging Information | Payload Bay | 560x260x270mm |
Hatch opening mechanism for Carbon Fiber SE3600 UAV Fixed Wing Drone.
