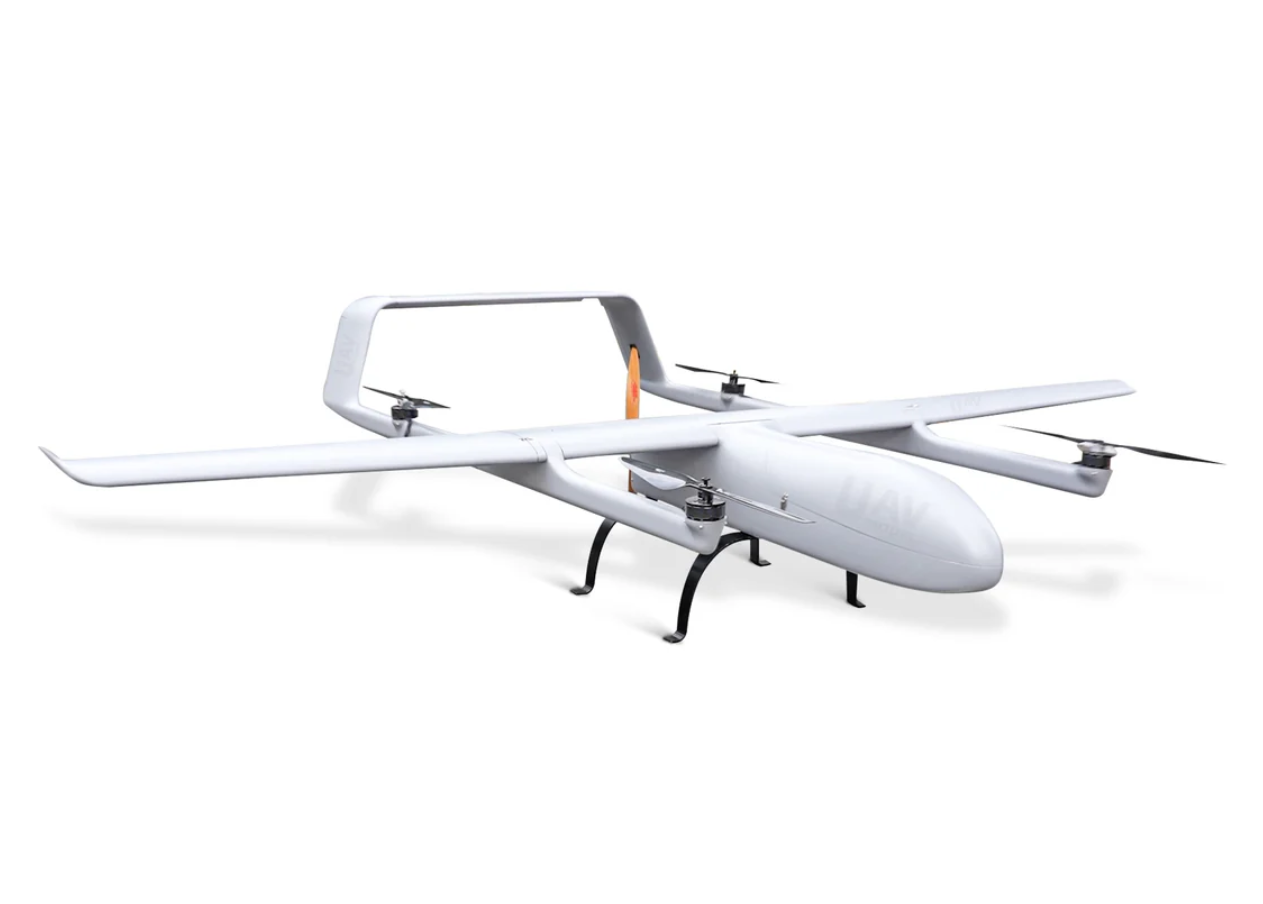

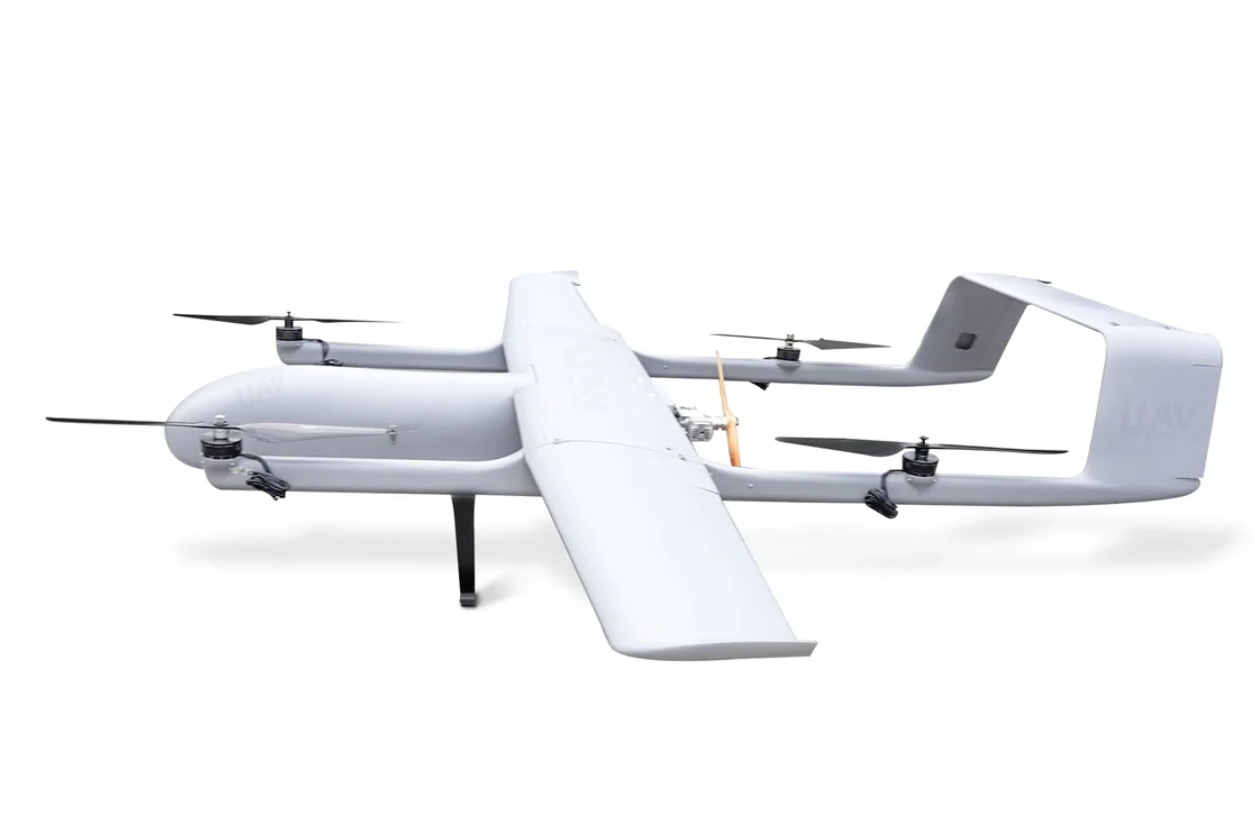

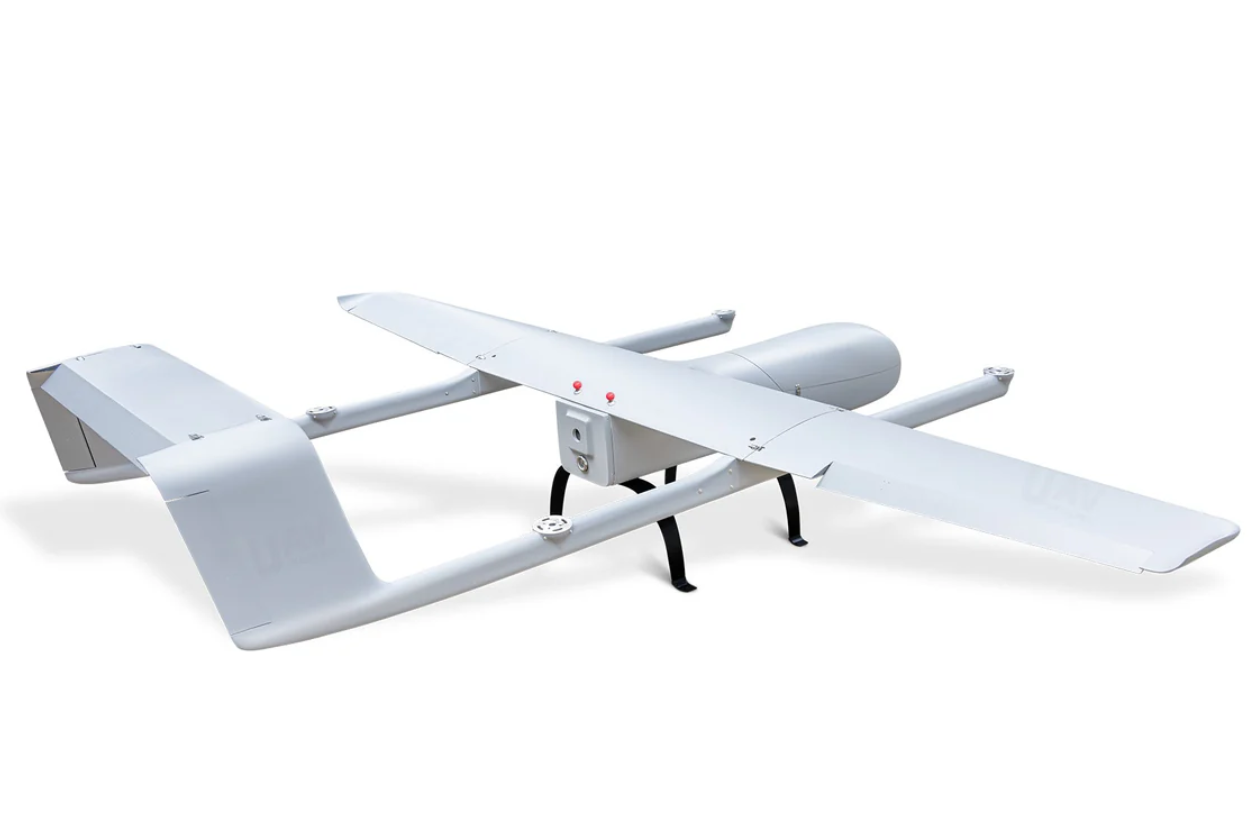

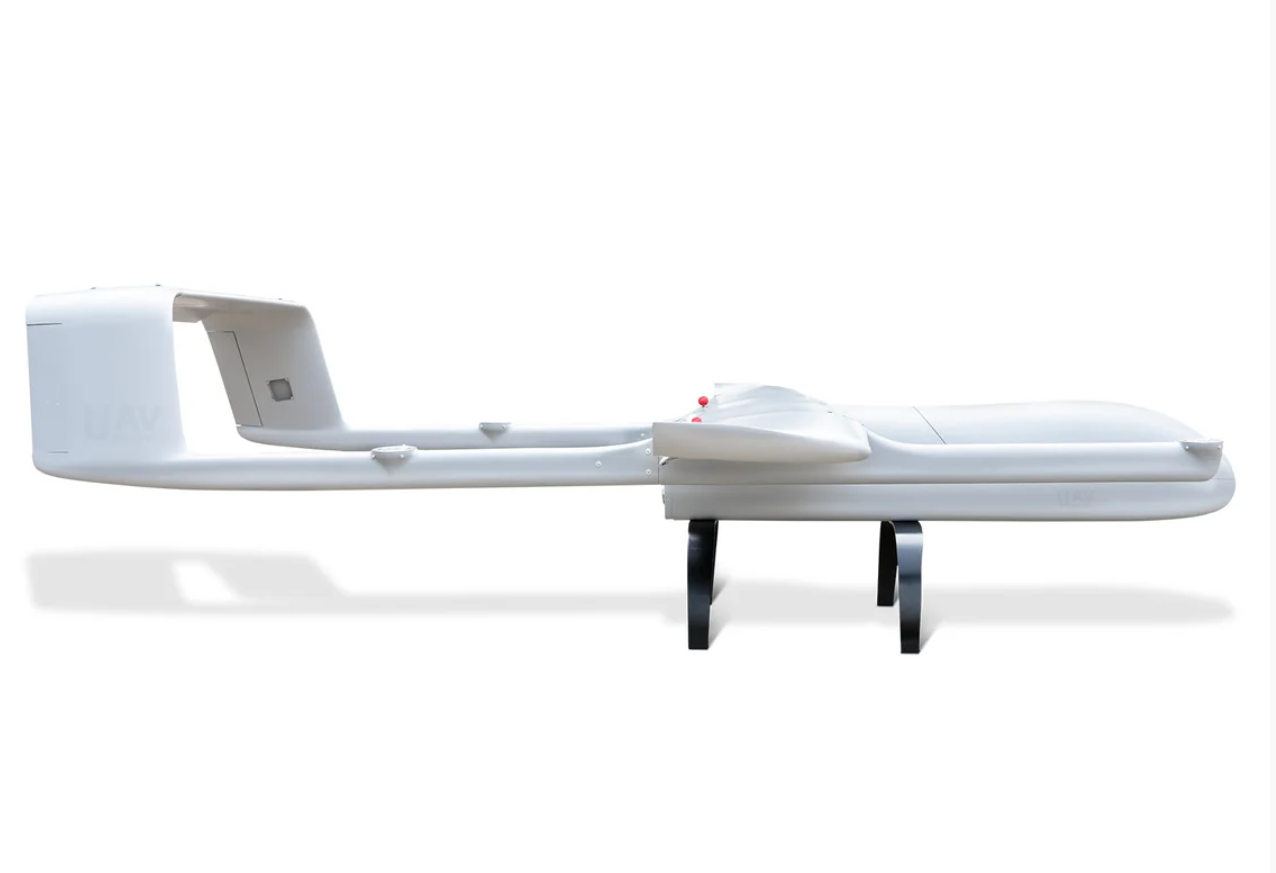

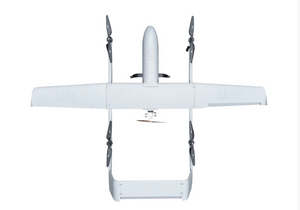

SKYWING VTOL UAV Carbon Fiber Long Range Drone SW3600
SKYWING VTOL UAV Carbon Fiber Long Range Drone SW3600
Description
SKYWING UAV SW600, VTOL (Vertical Take-Off and Landing) drone stands out with its impressive 3.6-meter wingspan, giving it a majestic presence in the sky. With a substantial 8KG large payload capacity, it is capable of handling a wide variety of tasks and equipment. Whether it's for surveillance, mapping, or transporting goods, the SKYEYE drone can handle the load with ease. Featuring cutting-edge technology and precision engineering, the SKYWING drone is a top choice for professionals seeking optimal performance and efficiency.
| SKYWING VTOL SE3600 UAV | ||
| Dimensions | Wingspan | 3600 mm |
| Length | 2420 mm | |
| Wing Area | 132 dm² | |
| Fuel Tank | 11 L | |
| Weight and Payload | Maximum Take-Off Weight | 40 KG |
| Empty Weight | 11 KG | |
| Payload Capacity | 10 KG | |
| Payload Bay | 560*260*270 mm | |
| Flight Characteristics | Flight Time | 3-5 h |
| Maxium Speed | 33 m/s | |
| Cruise Speed | 30 m/s | |
| Stall Speed | 24 m/s | |
| Range | 300 KM | |
| Packaging Information | Dimensions of Package | 160cm x51cm x50cm |
| Package Weight | 82kg | |
| Name | Specification | KIT | PNP(E) | PNP(M) |
| Flying platform | Outer wing | 2 | 2 | 2 |
| Center wing | 1 | 1 | 1 | |
| Main body | 1 | 1 | 1 | |
| Stay bar | 2 | 2 | 2 | |
| Undercarriage | 1 | 1 | 1 | |
| Skateboard | 1 | 1 | 1 | |
| Plain tail | 2 | 2 | 2 | |
| hatchcover | 1 | 1 | 1 | |
| Fuel tank | 1 | 1 | 1 | |
| Engine hood | 1 | 1 | 1 | |
| Power system(Engine) |
EME 70AC Engine With Auto Starter | 1 | ||
| T-motor V807170V (VTOL Motors)12s | 4 | |||
| T-motor 180A ESC | 4 | |||
| Savox SC-1256TG | 4 | |||
| Savox SC-1251MG | 2 | |||
| Sail 23x9 High Power Propeller | 1 | |||
| T-motor G29"Propeller (Pairs) | 2 | |||
| T-MOTOR Multi-rotor quick removal seat Q2434 | 2 | |||
| Power system(Motor) |
Dualsky GA6000.8180RPM/V Brushless Motor | 1 | ||
| Dualsky XC13036HV 130A High Voltage ESC | 1 | |||
| T-motor V807170V (VTOL Motors)12s | 4 | |||
| T-motor 180A ESC | 4 | |||
| Savox SC-1256TG | 3 | |||
| Savox SC-1251MG | 2 | |||
| Sail 23x9 High Power Propeller | 1 | |||
| T-motor G29"Propeller (Pairs) | 2 | |||
| T-MOTOR Multi-rotor quick removal seat Q2434 | 2 |
