Large load and gasoline power fixed-wing drone VF80P
Large load and gasoline power fixed-wing drone VF80P
Product Overview

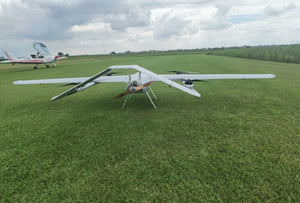

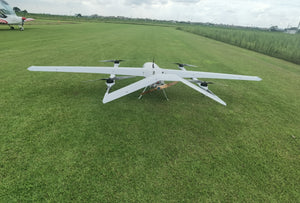

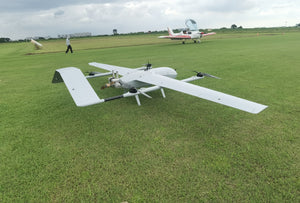

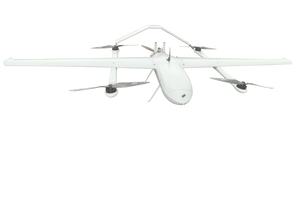

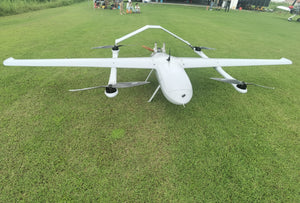

SKYWING VF80P is the vertical take-off and landing(VTOL) fixed-wing UAV with hybrid power.
It adopts a composite aerodynamic layout of quad-rotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long range of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions.
Hybrid power with Fuel and Battery,achieve a long endurance of more than 10 hours,which is widely used in inspection, emergency communication and other fields.
Performance Parameters
|
Fuselage Length |
2.58m |
|
Wingspan |
4.8m |
|
Max payload |
30kg |
|
Maximum take-off weight |
90kg |
|
Endurance |
2h@30kg payload 6h@20kg payload |
|
Cruising speed |
100~120km/h(27~33m/s) |
|
Max fuel capacity |
25L |
|
Maximum flight altitude |
5000m |
|
Control radius: |
200-400km (depending on fuel capacity) |
|
Operating temperature |
-10℃-45℃ |
|
Waterproof class |
IP54 |
|
Maximum wind resistance |
12m/s(level 6) |
|
Aviationp packaging boxsize |
1.95m*0.92m*0.71m |
Our common configuration components for reference:
